Smart Bridge Culvert

Smart Bridge Culvert is designed to assist bridge engineers in the analysis, design, and rating of cast-in-place and precast reinforced concrete culverts.

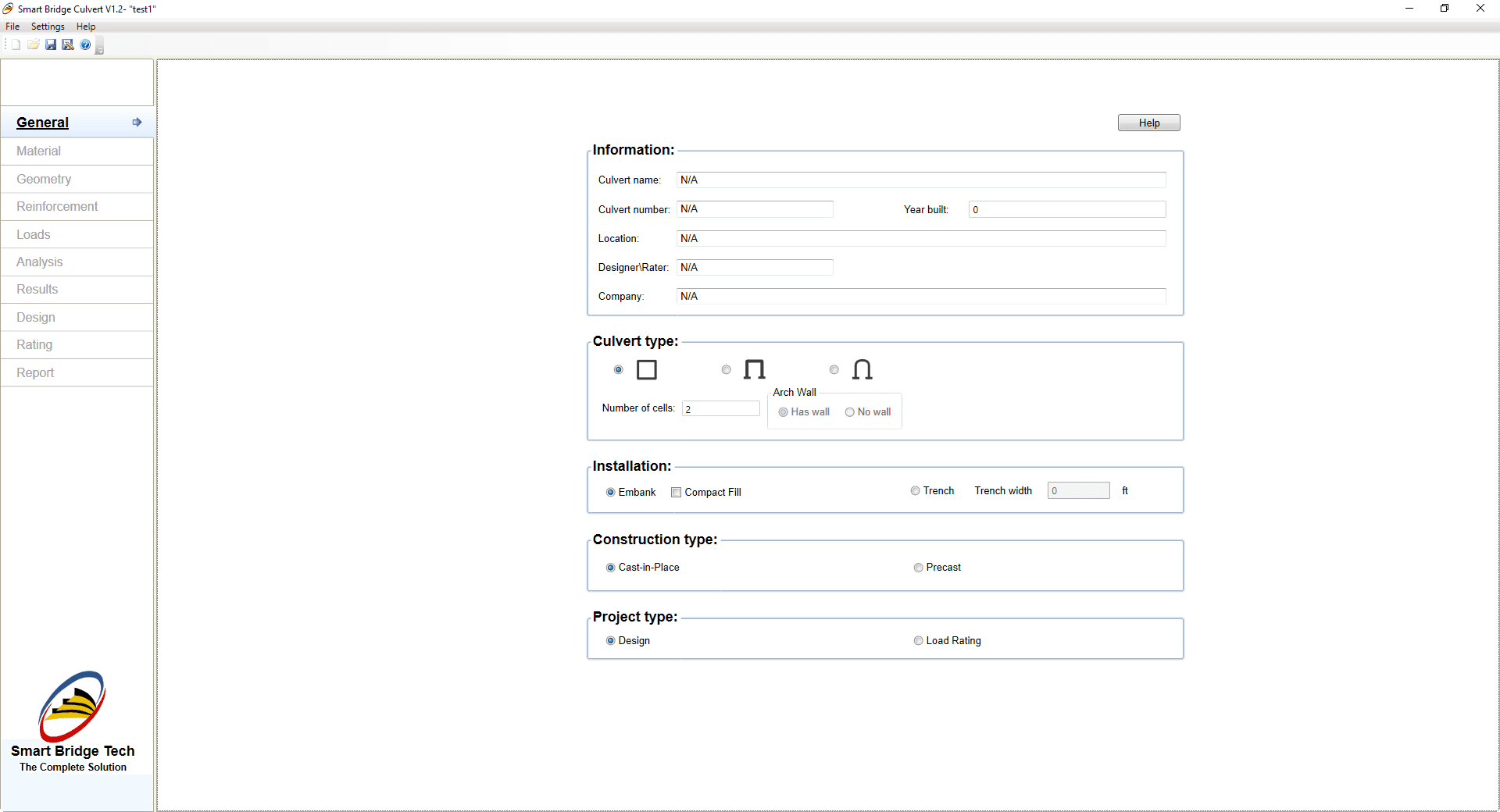

Smart Bridge Culvert covers closed-box, three-sided and arch culverts with one or multiple spans, as shown in the figure below. Additional culvert types, as well as retaining walls will be introduced in the near future.

Key Features

Easy culvert modeling

Automatic load generation

Comprehensive vehicle library

Live load distribution and load combination

Built-in FEM

Detailed PDF report with step-by-step hand solution

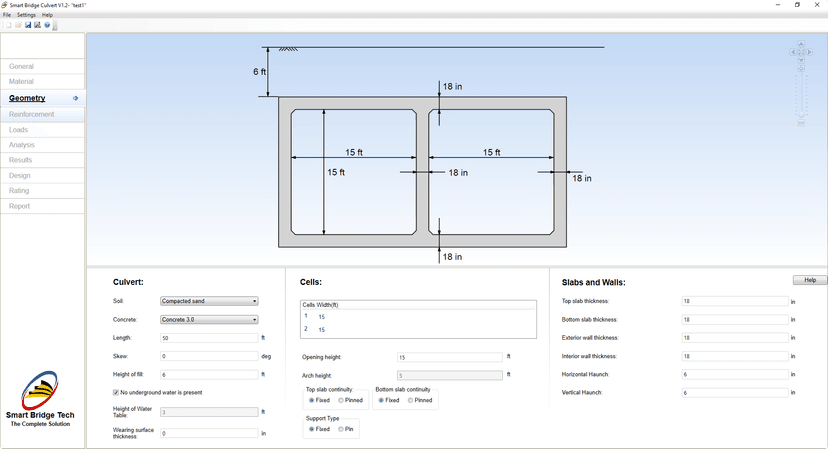

Easy culvert modeling:

The user-friendly graphic interface makes the culvert modeling extremely easy and efficient. The culvert graph is automatically generated based on the input data, which makes the data verification simple and convenient.

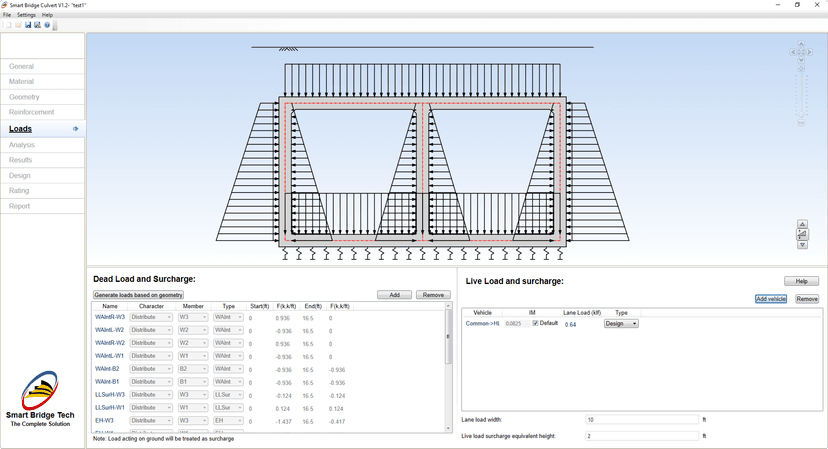

Automatic load generation

All the member self-weight, earth pressure, water pressure, and surcharges can be automatically generated in the program based on the input data. Appropriate load factors from AASHTO LRFD Specifications are added to each load according to the load type. The user can also choose to add additional loads or surcharges.

Comprehensive vehicle library

Smart Bridge Culvert includes a comprehensive library for all the common vehicles. The user can also easily add and configure new vehicles to be used in the analysis.

Live load distribution and load combination

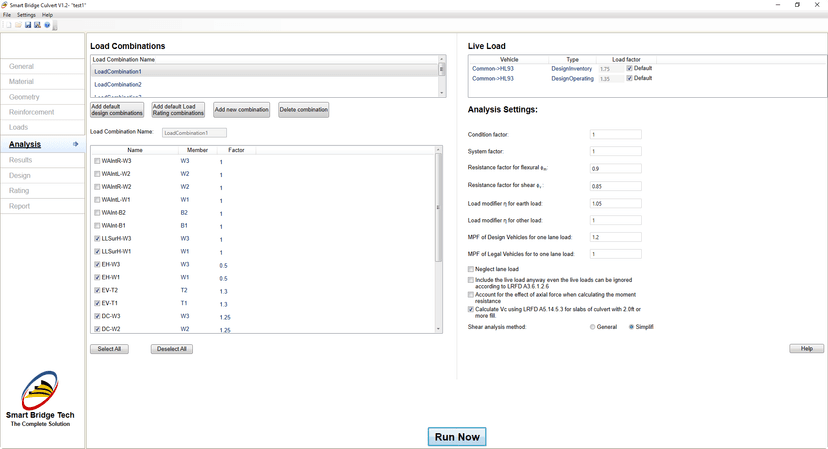

Vehicular loads are automatically positioned and distributed through the earth in accordance with the AASHTO design codes. The worst-case combinations are considered for different live load position, water presence, and maximum/minimum lateral earth pressure.

Built-in FEM

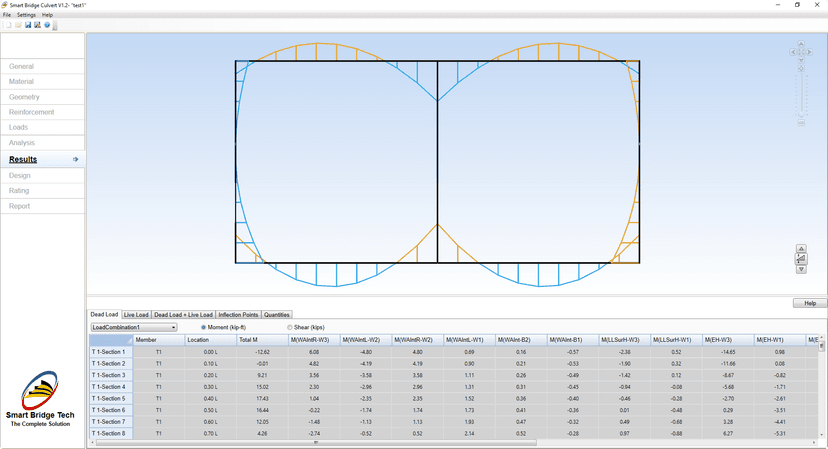

Smart Bridge Culvert is equipped with a powerful and efficient built-in FEM program for the structural analysis. All types of culverts can be analyzed in seconds with results shown in graphs and tables for easy review. This program has been carefully compared with other commercial FEM programs like SAP2000 and RISA to verify its accuracy.

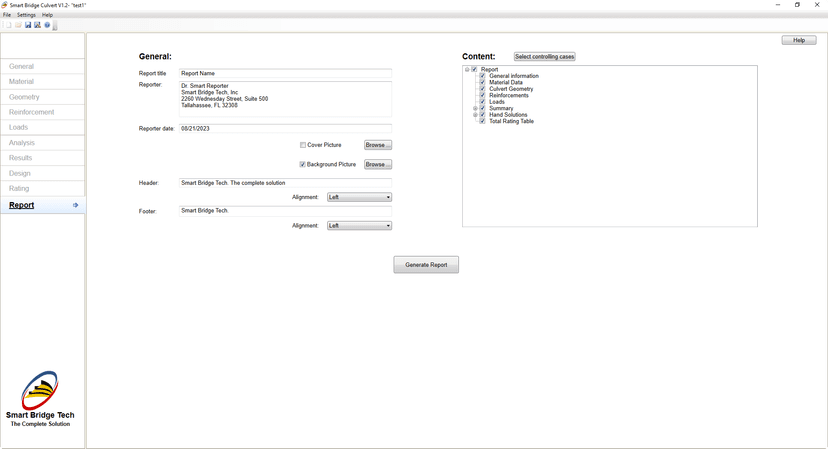

Detailed PDF report with step by step hand solution

Instead of the plain text report used by other software, Smart Bridge Culvert can generate a much more functional and professional PDF report with text, graphs, and tables. The user can also design the cover page, page headers/footers, and insert other pictures or PDF files. It can even create a step-by-step hand solution showing the code equations, numbers and references. NO MORE BLACK BOX.

Smart Bridge Culvert is part of a suite of programs developed by Smart Bridge Tech Inc. for bridge design and rating.



/Smart Bridge Culvert/1.png
/Smart Bridge Culvert/2.png
/Smart Bridge Culvert/3.png
/Smart Bridge Culvert/4.png
/Smart Bridge Culvert/5.png
/Smart Bridge Culvert/6.png
/Smart Bridge Culvert/7.png
/Smart Bridge Culvert/8.png
/Smart Bridge Culvert/9.png
/Smart Bridge Culvert/10.png
